Goodman HKTSD05X1 5kW Electric Heat Kit with Circuit Breaker for R-32 Air Handlers
Couldn't load pickup availability
Images are for illustration purposes, products are subject to manufacturer revision.

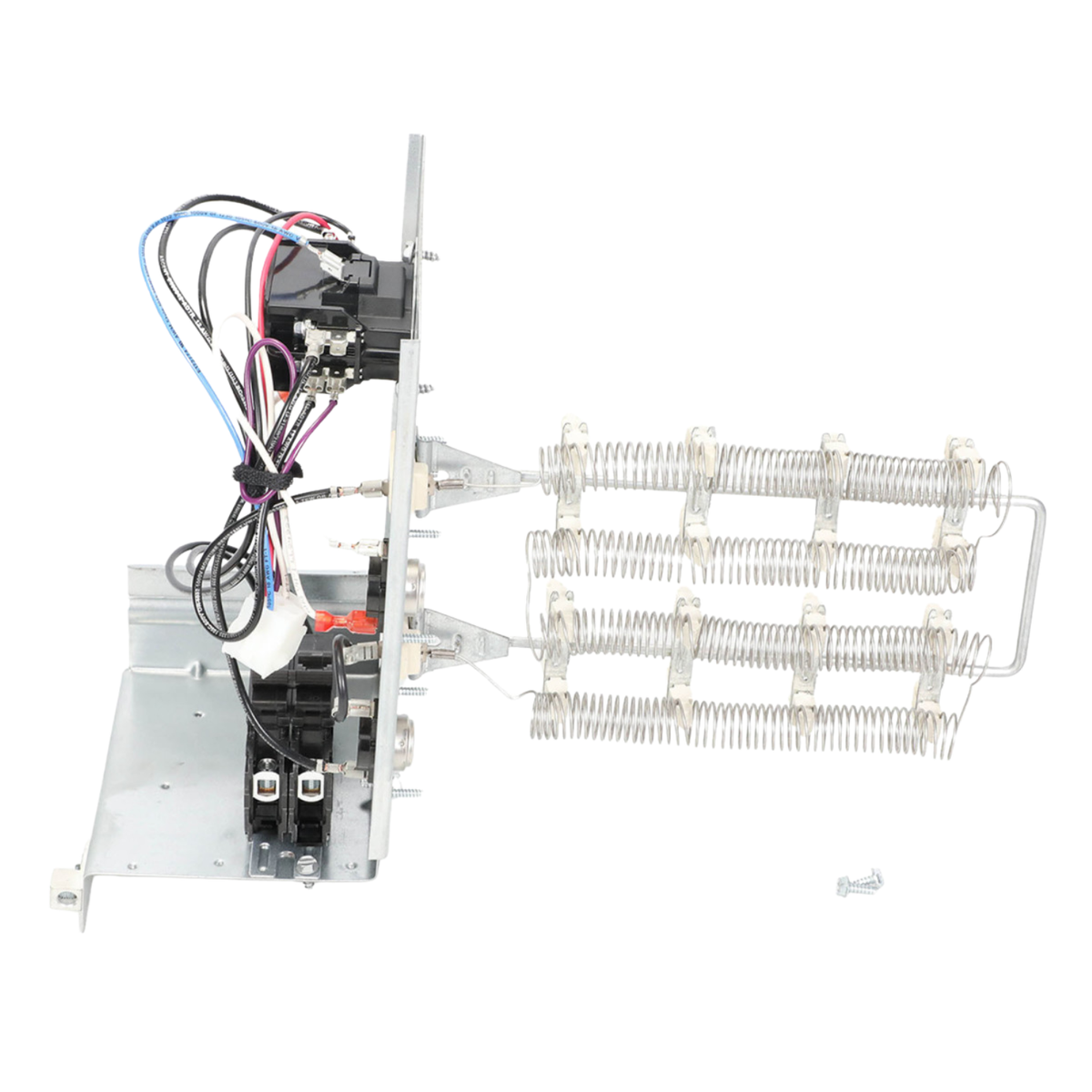

Goodman HKTSD05X1 – 5kW Electric Heat Kit with Circuit Breaker
The Goodman HKTSD05X1 5kW Electric Heat Kit provides dependable auxiliary and supplemental heating for compatible Goodman R-32 air handlers. Featuring a factory-installed circuit breaker, nickel-chromium heating elements, and plug-in wiring harness, this electric heat strip kit is designed for reliable operation and straightforward professional installation.
Key Features & Benefits
-
5 kW Nominal Heating Capacity: Provides approximately 16,378 BTU/h of supplemental heating at 240V.
-
Factory-Installed Circuit Breaker: Provides integrated overcurrent protection.
-
208/240V Single-Phase Operation: Designed for compatible Goodman air handlers.
-
Auxiliary & Emergency Heat: Supports supplemental and backup heating in qualifying heat pump systems.
-
Nickel-Chromium Heating Elements: Durable, corrosion-resistant heating elements.
-
Integrated Sequencers: Support staged heating and temperature control.
-
Plug-In Wiring Harness: Simplifies installation with approved air handling equipment.
-
High-Temperature Protection: Includes safety controls to help protect against overheating.
Compatible Goodman Air Handlers
The HKTSD05X1 is designed for approved Goodman air handlers, including qualifying AMST series models. Always verify compatibility and electrical requirements with the manufacturer's specifications before installation.
Order the Goodman HKTSD05X1 5 kW Electric Heat Kit with Circuit Breaker from EZ Plenum for your next HVAC installation or replacement project.
Frequently Asked Questions
What is the Goodman HKTSD05X1 electric heat kit?
The Goodman HKTSD05X1 is a nominal 5 kW electric resistance heat kit with a factory-installed circuit breaker. It provides auxiliary and supplemental heating for compatible Goodman air handlers.
How much heat does the Goodman HKTSD05X1 produce?
The Goodman HKTSD05X1 provides approximately 4.8 kW or 16,378 BTU per hour of heating output at 240V. At 208V, heating output decreases to approximately 3.6 kW or 12,283 BTU per hour.
Does the Goodman HKTSD05X1 include a circuit breaker?
Yes. The Goodman HKTSD05X1 includes a factory-installed circuit breaker that provides integrated overcurrent protection. This distinguishes it from compatible Goodman electric heat kits supplied without a circuit breaker.
Is the Goodman HKTSD05X1 compatible with R-32 air handlers?
Yes. The Goodman HKTSD05X1 is designed for qualifying Goodman R-32 air handlers, including approved AMST series models. Always verify compatibility using the manufacturer's heat kit application tables.
Can the Goodman HKTSD05X1 be used with a heat pump?
Yes. The Goodman HKTSD05X1 can provide auxiliary or emergency electric heating when installed in a compatible air handler connected to an approved heat pump system. Proper thermostat configuration and wiring are required.
What voltage does the Goodman HKTSD05X1 require?
The Goodman HKTSD05X1 operates on 208/240V single-phase, 60 Hz electrical power. Heating output and electrical current vary depending on the applied voltage.
What breaker size does the Goodman HKTSD05X1 require?
The required circuit breaker and electrical protection depend on the specific Goodman air handler paired with the HKTSD05X1. Minimum circuit ampacity and maximum overcurrent protection must be determined from the manufacturer's approved electrical tables and equipment nameplate.
Does the Goodman HKTSD05X1 include electric heating elements?
Yes. The Goodman HKTSD05X1 includes electric resistance heating elements designed to provide supplemental heating when energized by a compatible HVAC control system.
What is the difference between the Goodman HKTSD05X1 and HKTSN05X1?
Both models belong to Goodman's nominal 5 kW electric heat kit family. The HKTSD05X1 includes a factory-installed circuit breaker, while the HKTSN05X1 is supplied without a circuit breaker. Verify compatibility before selecting either model.
Can the Goodman HKTSD05X1 replace an existing electric heat strip kit?
Yes, the Goodman HKTSD05X1 may replace an existing electric heat kit when the air handler, electrical requirements, mounting configuration, and manufacturer compatibility specifications are satisfied. It should not be considered interchangeable with every older Goodman heat kit.
Is the Goodman HKTSD05X1 compatible with the Goodman AMST24BU1300?
Goodman's AMST R-32 heater kit application tables include nominal 5 kW electric heat options for the AMST24BU1300. Verify approval of the exact HKTSD05X1 configuration and applicable electrical requirements before installation.
Is the Goodman HKTSD05X1 compatible with the Goodman AMST60DU1300?
Goodman's AMST60DU1300 heat kit application tables include nominal 5 kW electric heat options. The HKTSD05X1 configuration must be verified against the manufacturer's approved compatibility and electrical specifications.
What are the shipping dimensions and weight of the Goodman HKTSD05X1?
Supplier-published package dimensions are approximately 12.5 inches long, 8.75 inches wide, and 15.75 inches high, with a shipping weight of approximately 8 pounds. Actual packaging may vary by supplier.
Does the Goodman HKTSD05X1 include an air handler?
No. The Goodman HKTSD05X1 includes the electric heat kit with circuit breaker only. The air handler, outdoor HVAC unit, thermostat, and other system accessories are sold separately unless otherwise specified.
What warranty comes with the Goodman HKTSD05X1?
Warranty coverage for the Goodman HKTSD05X1 depends on the manufacturer's applicable warranty terms, equipment eligibility, registration requirements, and installation conditions. Verify current warranty documentation for the installed equipment.
Who should install the Goodman HKTSD05X1 electric heat kit?
The Goodman HKTSD05X1 should be installed by a qualified HVAC professional following Goodman installation instructions, air handler compatibility requirements, and applicable electrical and mechanical codes.
