Goodman HKTSD08X1 8kW Electric Heat Kit with Circuit Breaker for R-32 Air Handlers
Couldn't load pickup availability
Images are for illustration purposes, products are subject to manufacturer revision.

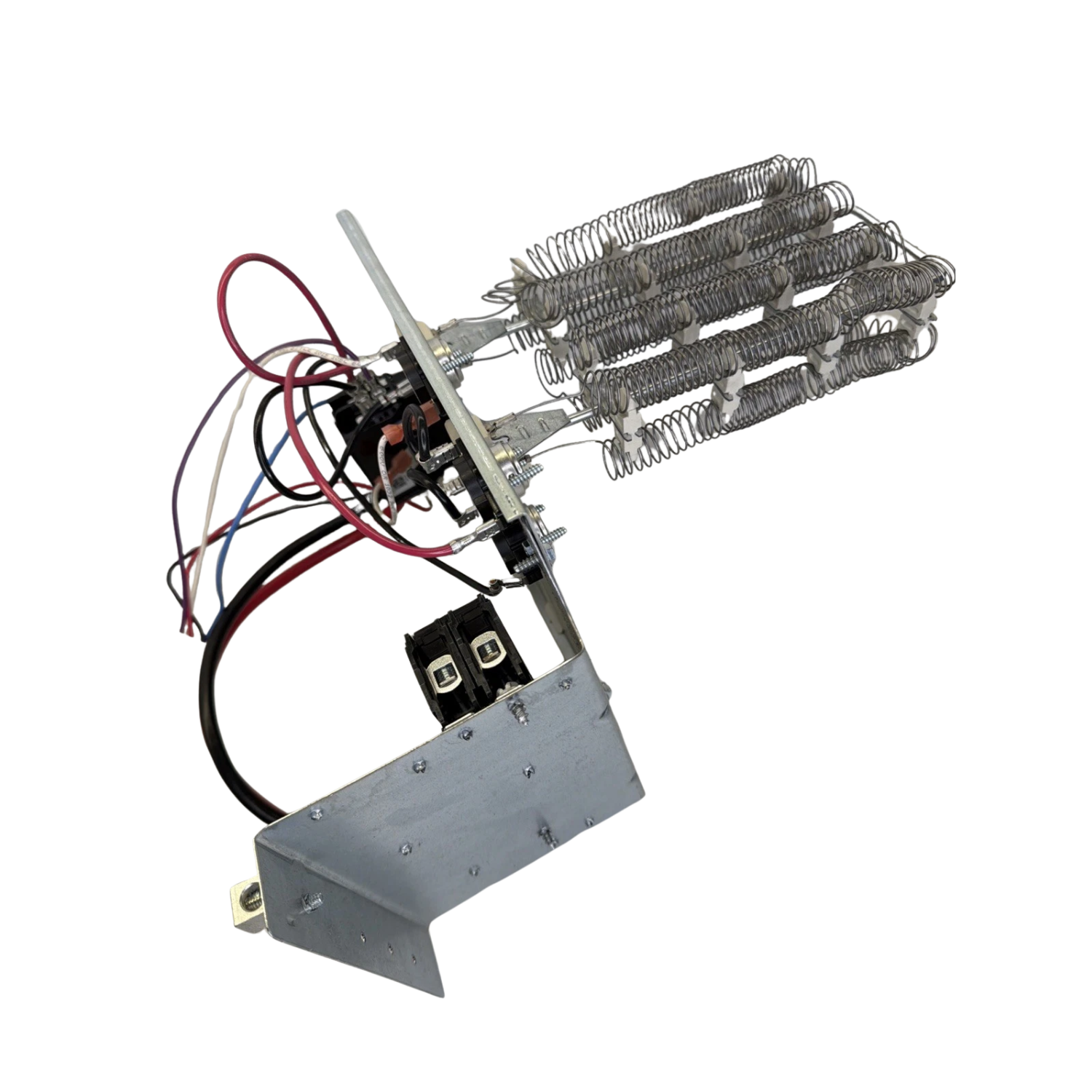

Goodman HKTSD08X1 – 8 kW Electric Heat Kit with Circuit Breaker
The Goodman HKTSD08X1 8 kW Electric Heat Kit provides dependable auxiliary, supplemental, and emergency heating for compatible Goodman air handlers and heat pump systems. Featuring a factory-installed circuit breaker, nickel-chromium heating elements, and plug-in wiring harness, this electric heat strip kit is designed for reliable heating performance and straightforward professional installation.
With a nominal 8 kW heating capacity, the HKTSD08X1 delivers approximately 27,300 BTU/h of electric resistance heat at 240V, making it an effective supplemental heating solution for properly sized HVAC systems.
Key Features & Benefits
-
8 kW Nominal Heating Capacity: Delivers approximately 27,300 BTU/h of electric heating at 240V.
-
Factory-Installed Circuit Breaker: Provides integrated overcurrent protection for the heater assembly.
-
208/240V Single-Phase Operation: Designed for compatible Goodman air handlers.
-
Auxiliary & Emergency Heating: Provides supplemental or backup heating in qualifying heat pump systems.
-
Nickel-Chromium Heating Elements: Durable electric resistance elements designed to resist corrosion.
-
Integrated Sequencers: Support controlled heating operation and temperature regulation.
-
Plug-In Wiring Harness: Simplifies installation with approved Goodman indoor equipment.
-
High-Temperature Safety Protection: Includes manufacturer-designed protective controls.
-
Factory-Assembled & Tested: Engineered for dependable performance and straightforward installation.
-
Broad Cabinet Compatibility: Designed for qualifying Goodman air handlers across supported cabinet sizes.
Reliable Auxiliary & Emergency Heating
The Goodman HKTSD08X1 provides additional heating capacity when installed in a compatible air handler.
During colder outdoor conditions, an electric heat kit can supplement heat pump operation when additional heating is required. With appropriate thermostat and system controls, it can also provide emergency backup heating.
The electric resistance elements produce heat directly, allowing the air handler's blower to distribute warm air throughout the conditioned space.
Integrated Circuit Breaker Protection
The HKTSD08X1 includes a factory-installed circuit breaker, providing integrated electrical protection for the heat kit.
Its plug-in wiring harness and factory-assembled construction help streamline installation with approved Goodman air handling equipment.
Electrical circuit sizing, breaker requirements, and conductor selection must follow the specific air handler and heat kit combination.
Compatible Goodman Air Handlers
The Goodman HKTSD08X1 is designed for compatible Goodman air handlers, including qualifying R-32 AMST series equipment.
The correct heat kit must be selected based on the air handler model, available electrical service, heating load requirements, and manufacturer's approved compatibility tables.
Important Installation Information
Electric heat kit with circuit breaker only. The air handler, outdoor condenser, thermostat, and additional HVAC accessories are sold separately unless otherwise specified.
Installation must be performed by a qualified HVAC professional following Goodman manufacturer instructions and applicable mechanical and electrical codes.
Heating capacity varies with supply voltage. Always verify the complete system's electrical requirements before installation.
Order the Goodman HKTSD08X1 8 kW Electric Heat Kit with Circuit Breaker from EZ Plenum for your next HVAC installation, replacement, or equipment upgrade.
Frequently Asked Questions
What is the Goodman HKTSD08X1 electric heat kit?
The Goodman HKTSD08X1 is a nominal 8 kW electric resistance heat kit with a factory-installed circuit breaker. It provides auxiliary and supplemental heating for compatible Goodman air handlers and heat pump systems.
How much heat does the Goodman HKTSD08X1 produce?
The Goodman HKTSD08X1 provides approximately 8 kW or 27,300 BTU per hour of electric heating at 240V. At 208V, heating output decreases to approximately 6 kW or 20,500 BTU per hour.
Does the Goodman HKTSD08X1 include a circuit breaker?
Yes. The Goodman HKTSD08X1 includes a factory-installed circuit breaker that provides integrated overcurrent protection. External electrical circuit requirements must still follow the manufacturer specifications and applicable codes.
Is the Goodman HKTSD08X1 compatible with R-32 air handlers?
Yes. The Goodman HKTSD08X1 is compatible with qualifying Goodman R-32 air handlers, including approved AMST series models. Always confirm the exact air handler and electric heat kit combination using manufacturer compatibility tables.
Can the Goodman HKTSD08X1 be used with a heat pump?
Yes. The Goodman HKTSD08X1 can provide auxiliary or emergency electric heat when installed in a compatible air handler connected to an approved heat pump system. Proper thermostat wiring and heating controls are required.
What voltage does the Goodman HKTSD08X1 require?
The Goodman HKTSD08X1 operates on 208/240V single-phase, 60 Hz electrical power. Its rated heater current is approximately 28.9 amps at 208V and 33.3 amps at 240V.
What breaker size does the Goodman HKTSD08X1 require?
The required circuit protection depends on the specific Goodman air handler paired with the heat kit. Minimum circuit ampacity and maximum overcurrent protection must be determined using the manufacturer's approved electrical tables and equipment nameplate.
Does the Goodman HKTSD08X1 include heating elements?
Yes. The Goodman HKTSD08X1 features nickel-chromium electric resistance heating elements designed to provide dependable supplemental heating when energized by the compatible HVAC system.
What is the difference between the Goodman HKTSD08X1 and HKTSN08X1?
Both models belong to Goodman's nominal 8 kW electric heat kit family. The HKTSD08X1 includes a factory-installed circuit breaker, while the HKTSN08X1 is supplied without the integrated circuit breaker. Verify the approved configuration for your air handler.
What is the difference between the Goodman HKTSD05X1 and HKTSD08X1?
The Goodman HKTSD05X1 provides nominal 5 kW heating capacity, while the HKTSD08X1 provides nominal 8 kW heating capacity. Both include a factory-installed circuit breaker, but the 8 kW model produces more heat and requires greater electrical capacity.
Can the Goodman HKTSD08X1 replace an older electric heat kit?
The Goodman HKTSD08X1 may replace an existing electric heat kit when the air handler, mounting configuration, electrical requirements, and manufacturer compatibility specifications are satisfied. It is identified as a replacement option for the HKSC08XC in manufacturer cross-reference information.
Does the Goodman HKTSD08X1 fit all Goodman air handler cabinets?
The Goodman HKTSD08X1 is designed for supported Goodman air handlers across multiple cabinet widths. However, compatibility depends on the specific air handler series, model revision, electrical requirements, and manufacturer approval.
Is the Goodman HKTSD08X1 compatible with Goodman AMST air handlers?
Goodman's AMST R-32 heat kit tables include nominal 8 kW HKTS electric heat kit options for qualifying models. The exact HKTSD08X1 configuration and electrical requirements must be verified for the selected air handler.
Does the Goodman HKTSD08X1 include an air handler?
No. The Goodman HKTSD08X1 includes the electric heat kit with circuit breaker only. The air handler, outdoor condenser, thermostat, and other HVAC components are sold separately unless otherwise specified.
What are the shipping dimensions and weight of the Goodman HKTSD08X1?
Published supplier packaging information varies. HD Supply lists a carton measuring approximately 12.5 by 8.5 by 16 inches and weighing 5.6 pounds. Johnstone Supply lists different dimensions and a similar weight. Confirm actual packaging with the shipping supplier.
What warranty comes with the Goodman HKTSD08X1?
Warranty coverage for the Goodman HKTSD08X1 depends on the manufacturer's applicable warranty terms, installation eligibility, and system configuration. Verify current warranty documentation for the installed equipment.
Who should install the Goodman HKTSD08X1 electric heat kit?
The Goodman HKTSD08X1 should be installed by a qualified HVAC professional following Goodman installation instructions, approved air handler compatibility requirements, and applicable electrical and mechanical codes.
