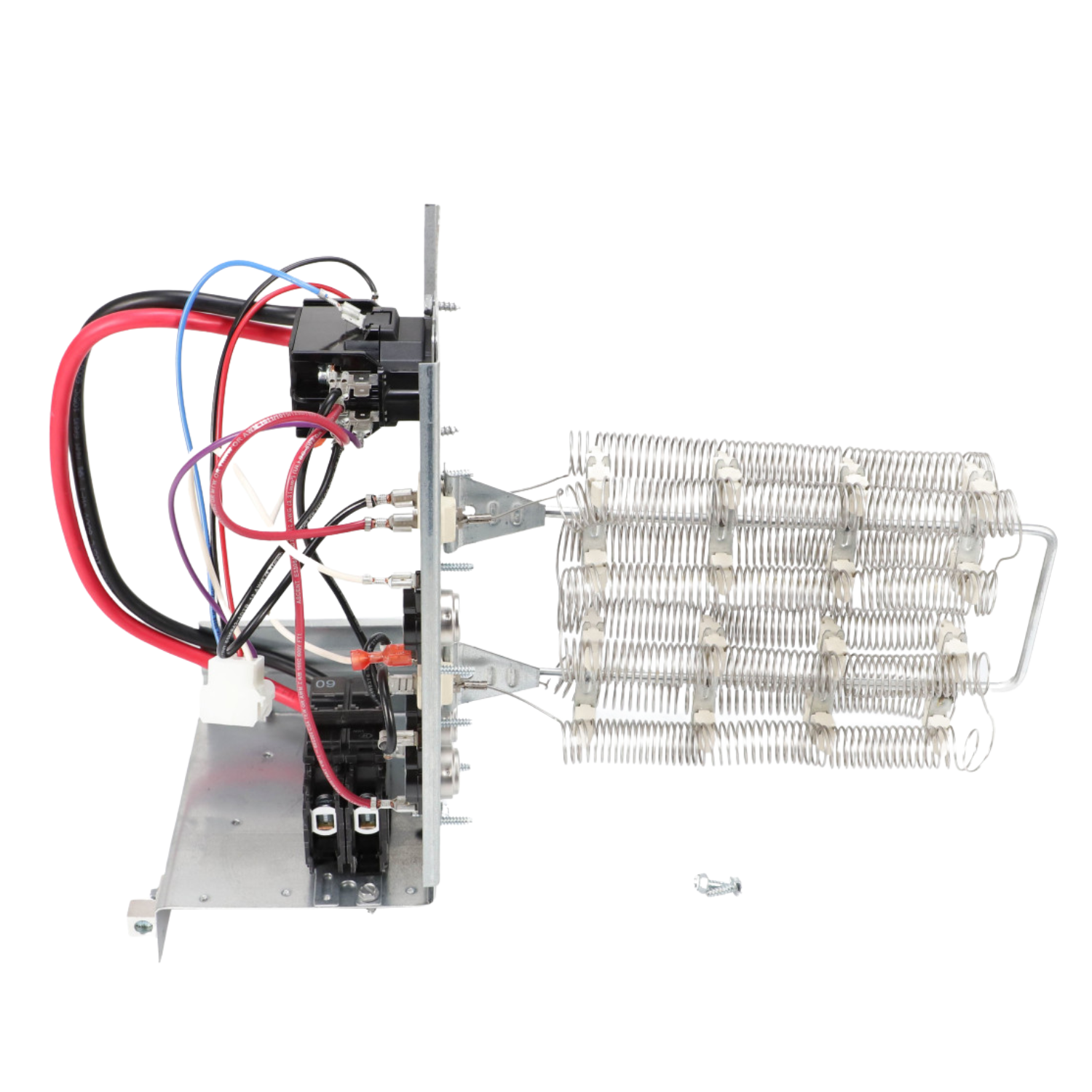

Goodman HKTSD10X1 10kW Electric Heat Kit with Circuit Breaker for R-32 Air Handlers
Couldn't load pickup availability
Images are for illustration purposes, products are subject to manufacturer revision.
Goodman HKTSD10X1 – 10 kW Electric Heat Kit with Circuit Breaker
The Goodman HKTSD10X1 10 kW Electric Heat Kit provides dependable auxiliary, supplemental, and emergency heating for compatible Goodman air handlers and heat pump systems. Equipped with a factory-installed circuit breaker, nickel-chromium heating elements, and plug-in wiring harness, this electric heat strip kit is designed for reliable operation and professional installation.
With a nominal 10 kW heating capacity, the HKTSD10X1 delivers approximately 32,756 BTU/h of electric resistance heat at 240V, providing supplemental heating for properly sized residential and light commercial HVAC systems.
Key Features & Benefits
-
10 kW Nominal Heating Capacity: Delivers 9.6 kW or approximately 32,756 BTU/h at 240V.
-
Factory-Installed Circuit Breaker: Provides integrated electrical overcurrent protection.
-
208/240V Single-Phase Operation: Designed for compatible Goodman air handlers.
-
Auxiliary & Emergency Heating: Provides additional or backup heating in qualifying heat pump systems.
-
Nickel-Chromium Heating Elements: Durable electric resistance elements designed to resist rust and corrosion.
-
Integrated Sequencers: Support controlled heating operation.
-
Plug-In Wiring Harness: Simplifies connection to compatible Goodman indoor equipment.
-
High-Temperature Safety Protection: Incorporates manufacturer-designed protective controls.
-
Factory-Assembled & Tested: Manufactured for dependable operation and professional installation.
-
Multiple Cabinet Applications: Fits qualifying Goodman air handlers across approved cabinet configurations.
Dependable Auxiliary & Emergency Heating
The Goodman HKTSD10X1 provides additional heating capacity when installed in an approved air handler.
During colder outdoor conditions, auxiliary electric heat can supplement a heat pump when additional heating is needed. When supported by the installed thermostat and system controls, the kit can also provide emergency backup heating.
Electric resistance elements produce heat directly, allowing the air handler's blower to circulate warm air throughout the conditioned space.
Integrated Circuit Breaker Protection
The HKTSD10X1 includes a factory-installed circuit breaker, helping protect the heater assembly against electrical overloads and short circuits.
Its plug-in wiring harness, integrated safety controls, and factory-assembled construction support professional installation with approved Goodman equipment.
Proper conductor sizing, overcurrent protection, and electrical circuit design must follow the requirements for the specific air handler and heater combination.
Compatible Goodman Air Handlers
The Goodman HKTSD10X1 is designed for manufacturer-approved air handlers, including qualifying R-32 Goodman AMST series models.
Air handler compatibility must be confirmed using the exact equipment model, revision, manufacturer heater kit approval table, and electrical requirements.
Important Installation Information
Electric heat kit with circuit breaker only. The air handler, outdoor condenser, thermostat, and other installation accessories are sold separately unless otherwise specified.
The heating output varies with supply voltage. Installation must be performed by a qualified HVAC professional following Goodman instructions and applicable mechanical and electrical codes.
Order the Goodman HKTSD10X1 10 kW Electric Heat Kit with Circuit Breaker from EZ Plenum for your next HVAC installation, electric heat upgrade, or replacement project.
Frequently Asked Questions
What is the Goodman HKTSD10X1 electric heat kit?
The Goodman HKTSD10X1 is a nominal 10 kW electric resistance heat kit with a factory-installed circuit breaker. It provides auxiliary, supplemental, or emergency heating for compatible Goodman air handlers.
How much heat does the Goodman HKTSD10X1 produce?
The Goodman HKTSD10X1 provides 9.6 kW or approximately 32,756 BTU per hour of heating at 240V. At 208V, heating output decreases to approximately 7.2 kW or 24,567 BTU per hour.
Does the Goodman HKTSD10X1 include a circuit breaker?
Yes. The Goodman HKTSD10X1 includes a factory-installed circuit breaker that provides integrated overcurrent protection. Electrical installation must still follow manufacturer specifications and applicable codes.
Is the Goodman HKTSD10X1 compatible with R-32 air handlers?
Yes. The Goodman HKTSD10X1 is designed for qualifying Goodman R-32 air handlers, including approved AMST series models. Always verify the specific air handler model, revision, and manufacturer's heater kit compatibility requirements.
Can the Goodman HKTSD10X1 be used with a heat pump?
Yes. The Goodman HKTSD10X1 can provide auxiliary or emergency electric heating when installed in a compatible air handler connected to an approved heat pump system. Proper thermostat wiring and heating controls are required.
What voltage does the Goodman HKTSD10X1 require?
The Goodman HKTSD10X1 operates on 208/240V single-phase, 60 Hz electrical power. Its heating element current is approximately 34.7 amps at 208V and 40 amps at 240V.
What breaker size does the Goodman HKTSD10X1 require?
The required circuit protection depends on the specific air handler paired with the HKTSD10X1. Minimum circuit ampacity and maximum overcurrent protection must be determined from Goodman's approved heater kit electrical tables and the equipment nameplate.
Does the Goodman HKTSD10X1 include electric heating elements?
Yes. The Goodman HKTSD10X1 includes nickel-chromium electric resistance heating elements designed to provide dependable supplemental heating when activated by a compatible HVAC control system.
What is the difference between the Goodman HKTSD10X1 and HKTSN10X1?
Both belong to Goodman's nominal 10 kW electric heat kit family. The HKTSD10X1 includes a factory-installed circuit breaker, while the HKTSN10X1 is supplied without an integrated circuit breaker. Confirm the approved configuration for your air handler.
What is the difference between the Goodman HKTSD08X1 and HKTSD10X1?
The Goodman HKTSD08X1 provides nominal 8 kW heating capacity, while the HKTSD10X1 provides nominal 10 kW heating capacity. Both include factory-installed circuit breakers, but the 10 kW model delivers greater heating output and requires more electrical capacity.
Can the Goodman HKTSD10X1 replace an older heat strip kit?
The Goodman HKTSD10X1 may replace an older electric heat kit, including certain HKSC10XC applications, when the equipment model, revision, electrical requirements, and manufacturer compatibility approvals are satisfied. It should not be assumed interchangeable with every older heater kit.
Does the Goodman HKTSD10X1 fit all Goodman air handlers?
No. Although the HKTSD10X1 is designed for multiple approved Goodman cabinet sizes, compatibility depends on the specific air handler series, model revision, electrical requirements, and manufacturer-approved heater kit combinations.
Is the Goodman HKTSD10X1 compatible with Goodman AMST air handlers?
Goodman's AMST R-32 heater kit tables include nominal 10 kW HKTS heater options for qualifying models. Verify approval of the exact HKTSD10X1 configuration and the specific air handler revision before installation.
Does the Goodman HKTSD10X1 include an air handler?
No. The Goodman HKTSD10X1 includes the electric heat kit with circuit breaker only. The air handler, outdoor HVAC equipment, thermostat, and additional accessories are sold separately unless otherwise specified.
What are the shipping dimensions and weight of the Goodman HKTSD10X1?
Johnstone Supply lists shipping dimensions of approximately 12.7 inches long, 9.1 inches wide, and 16.5 inches high, with a shipping weight of 5.8 pounds. Actual packaging may vary by distributor.
What warranty comes with the Goodman HKTSD10X1?
Warranty coverage for the Goodman HKTSD10X1 depends on the manufacturer's applicable warranty terms, equipment eligibility, installation requirements, and registration conditions. Verify current warranty documentation before purchase.
Who should install the Goodman HKTSD10X1 electric heat kit?
The Goodman HKTSD10X1 should be installed by a qualified HVAC professional following Goodman installation instructions, approved air handler compatibility requirements, and applicable mechanical and electrical codes.
