R6 Insulated Backpan for QuadraSnap 24x24 T-Bar Diffuser

The QuadraSnap R6-rated Fiberglass Insulated Backpan provides an insulated air-distribution enclosure for the QuadraSnap 24x24 T-Bar lay-in supply diffuser and return filter grille.

Designed to install above a standard 24x24 lay-in T-bar ceiling diffuser, the backpan helps contain and direct airflow while reducing thermal transfer between the conditioned air and the surrounding ceiling space.

The backpan is constructed with R6 rigid fiberglass insulation featuring a durable black interior facing and reinforced foil exterior. Its insulated design makes it suitable for commercial supply-air and return-air applications where a defined duct enclosure is required.

Pair the backpan with the QuadraSnap diffuser for supply-air applications or with the QuadraSnap return filter grille when a ducted return connection is needed.

The backpan is sold as an accessory and does NOT include the QuadraSnap diffuser, magnetic core, filter, or duct collar unless specifically selected/added to purchase.

R6 Fiberglass Insulated Backpan Highlights

• R6 Insulated Construction
  Helps reduce heat transfer and condensation risk around the air-distribution enclosure.
• Designed for QuadraSnap 24x24
  Manufactured to pair with the QuadraSnap architectural supply diffuser and return filter grille.
• Supply or Return Applications
  Suitable for ducted supply-air or return-air configurations.
• Commercial T-Bar Ceiling Use
  Designed for installation above standard 2-foot by 2-foot suspended ceiling grids.
• Insulated Airflow Enclosure
  Creates a defined pathway between the duct system and the ceiling air device.
• Black Interior Facing

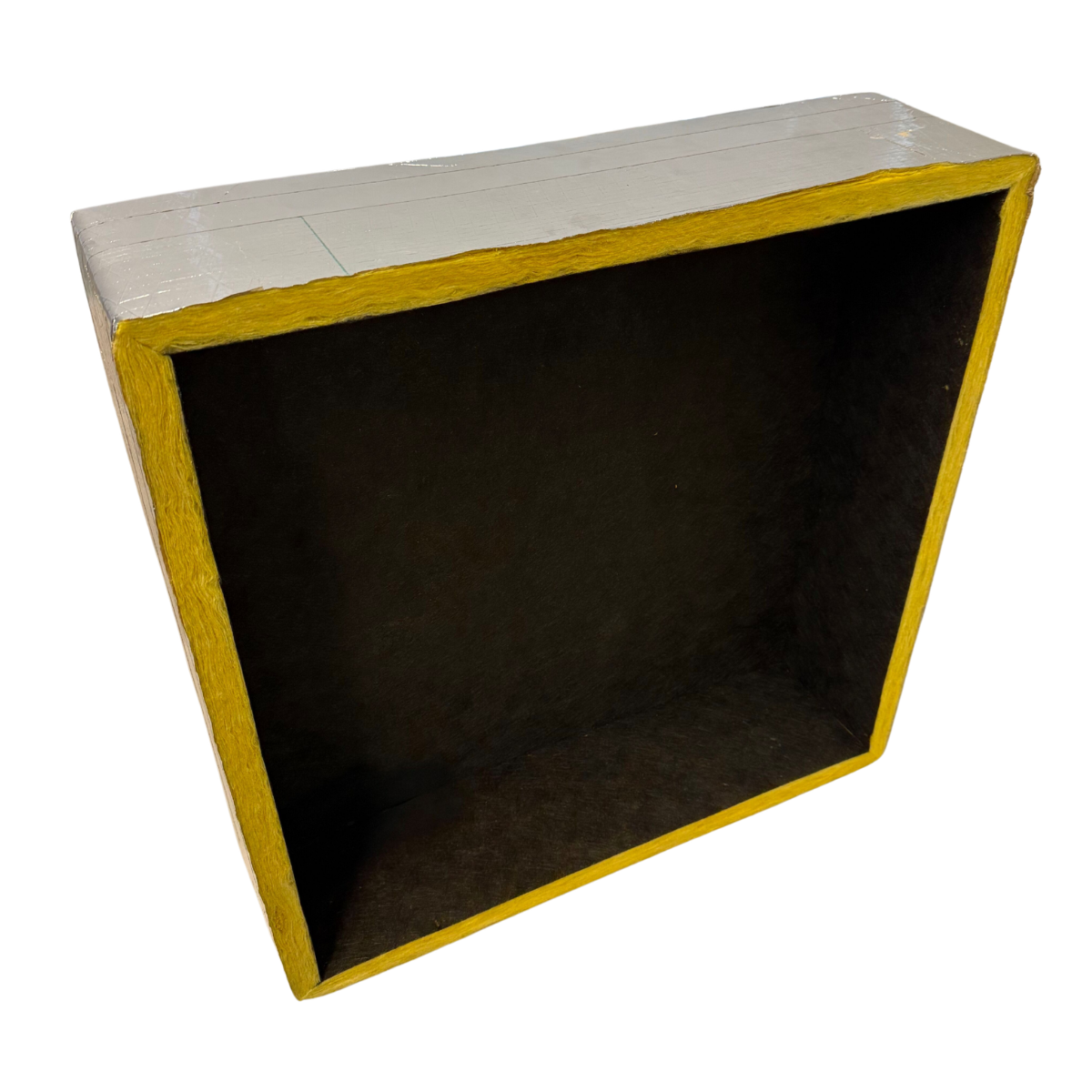

  Provides a clean, dark interior appearance behind the diffuser face.
• Foil-Faced Exterior

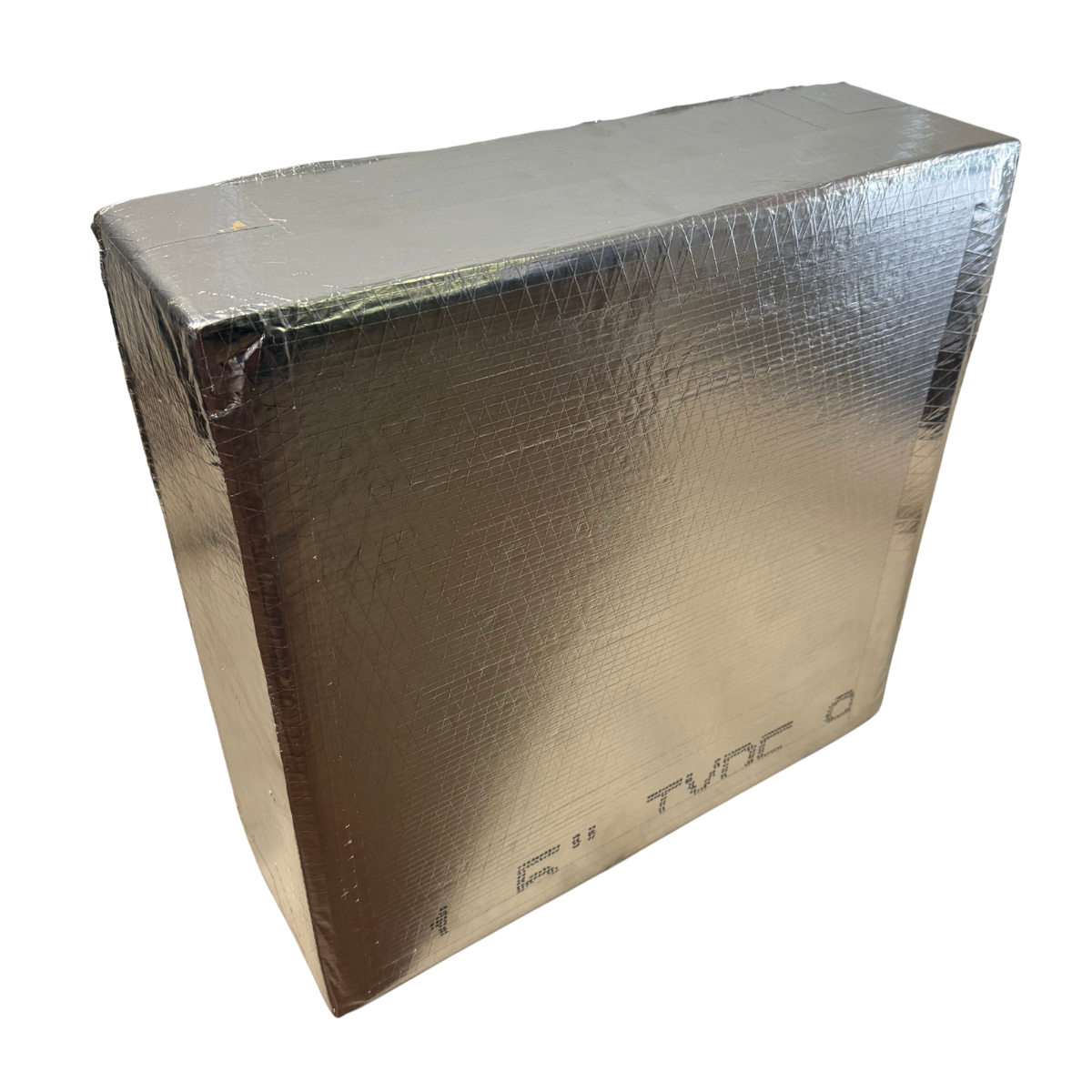

  Reinforced exterior facing helps protect the insulation and maintain the backpan shape.
• Optional Duct Connection
  Can be configured with the required collar or duct opening for the project (duct collar sold seperately, field-installed accessory).
• Lightweight Construction
  Easier to handle above suspended ceilings than conventional metal-lined plenums.
• Manufactured for Commercial HVAC Installations
  Designed for offices, retail spaces, medical facilities, schools, restaurants, and tenant build-outs.

Important Compatibility Notice

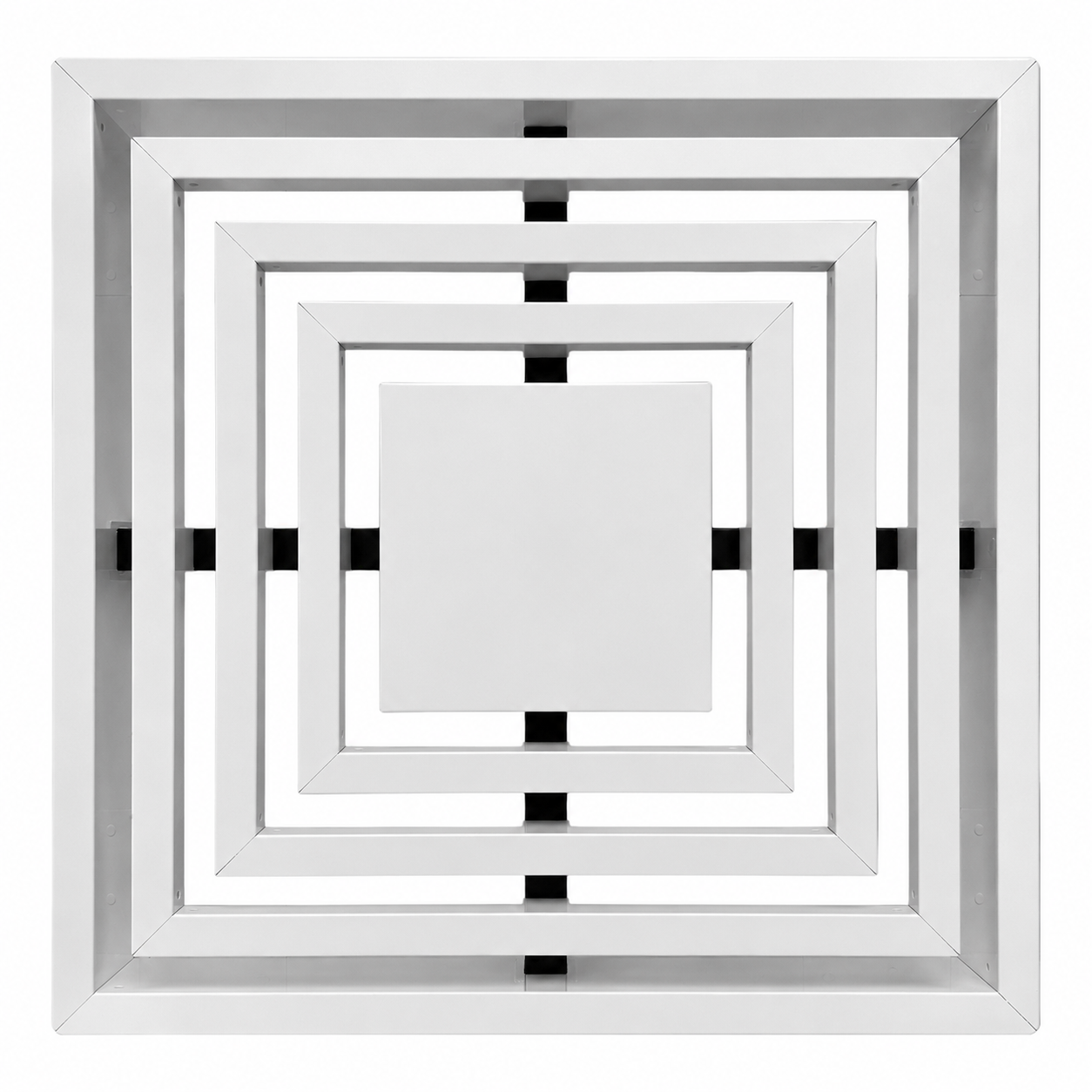

This backpan is designed specifically for the QuadraSnap 24x24 Architectural Lay-In T-Bar Supply Diffuser and Return Filter Grille.

Verify product compatibility, duct connection size, ceiling clearance, airflow requirements, and installation conditions before ordering.
